Ubiquiti UF-WIFI6-AU, UFiber Gigabit WiFi6 Passive Optical Network CPE with Built-in WiFi and Multiple VLAN Aware Switch Ports, 1 Year Warranty
$233.04
Out of stock
- QLDOut of stock
- NSWOut of stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.

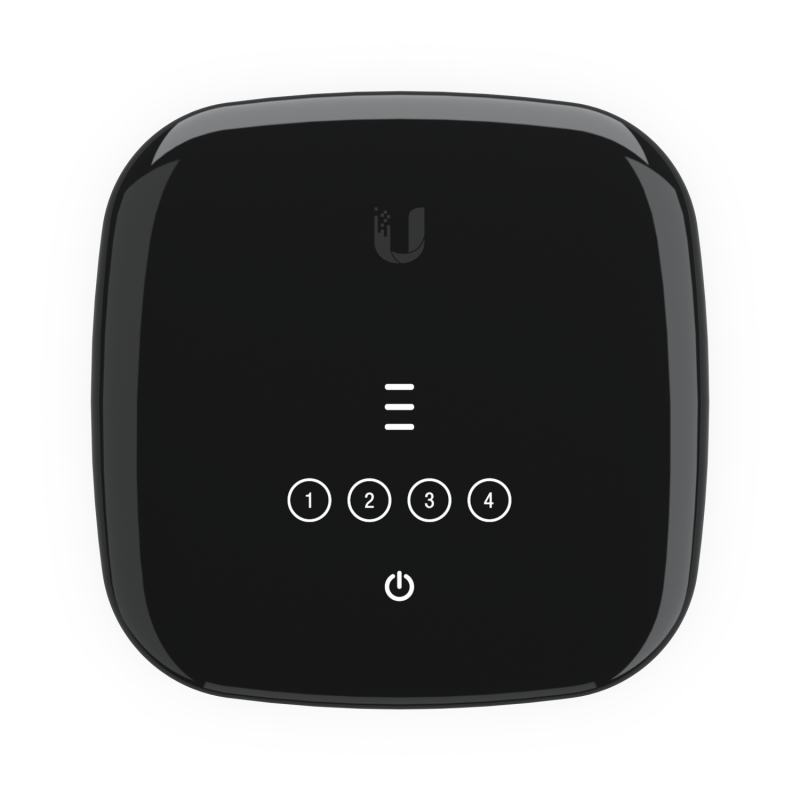

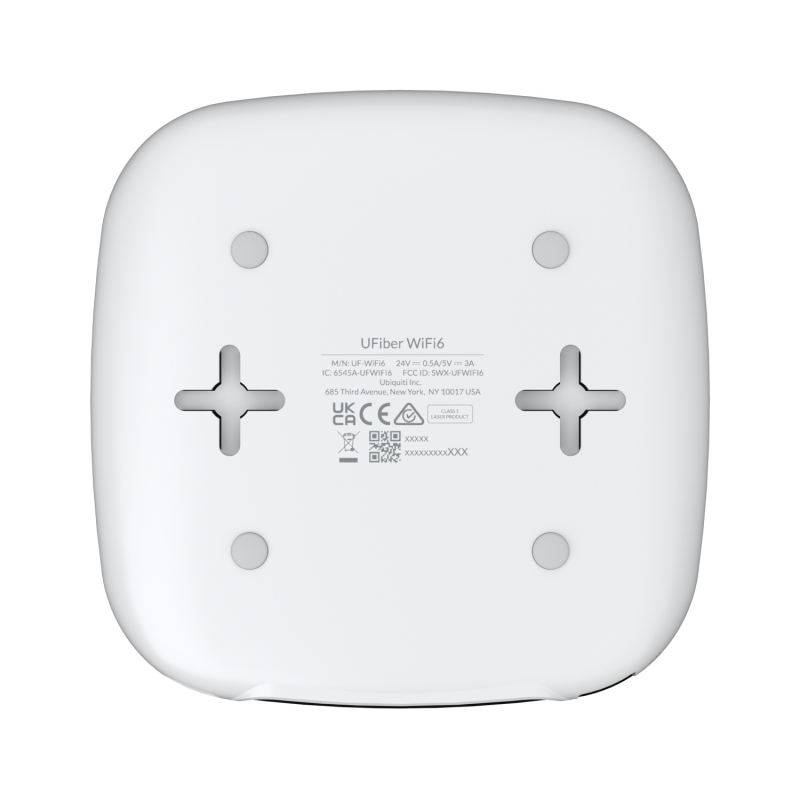

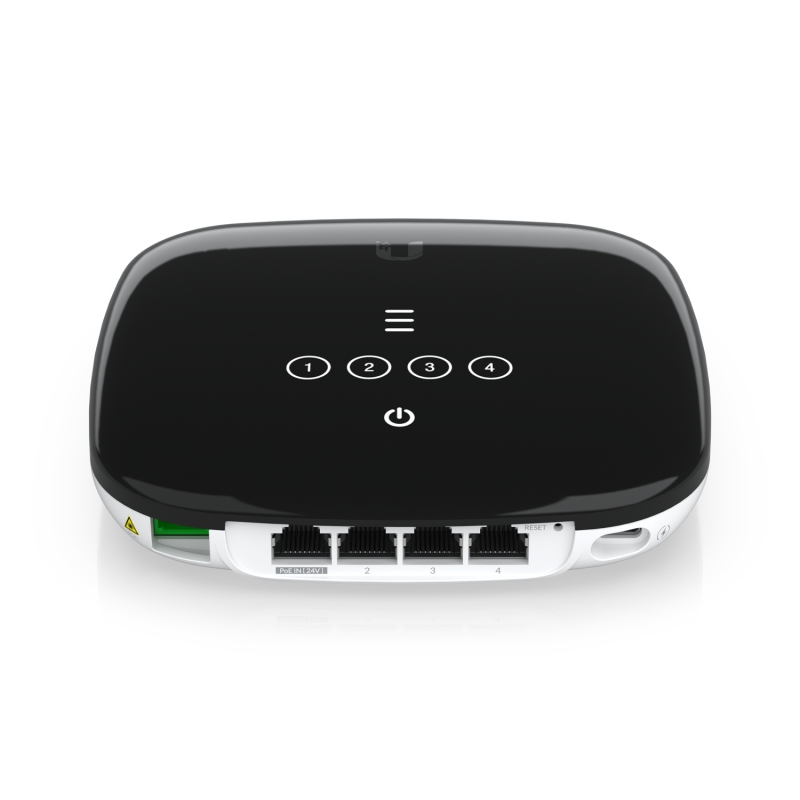

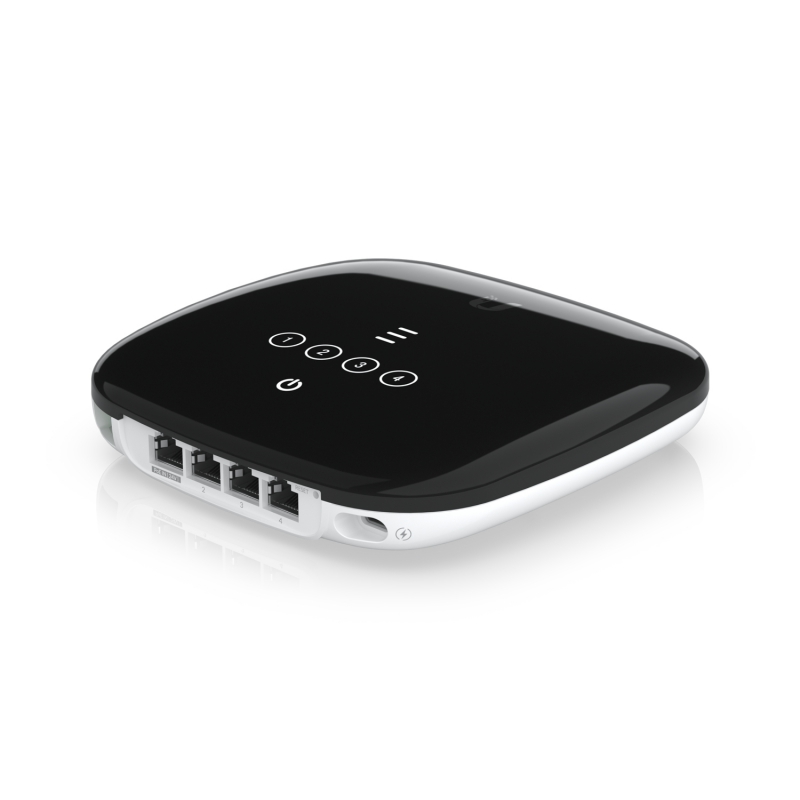

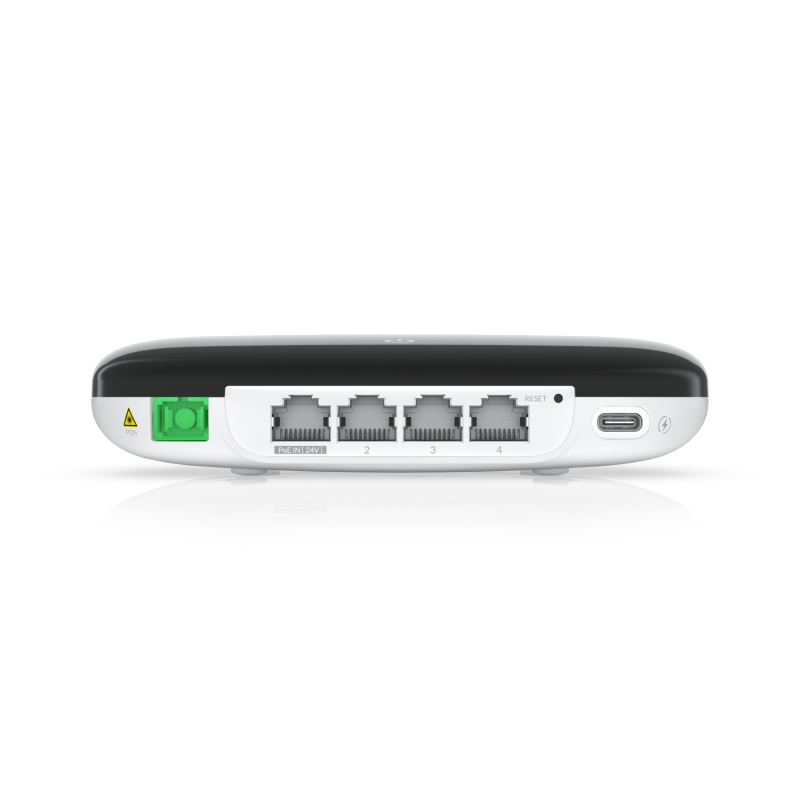

High-performance WiFi 6 GPON CPE.
The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.
Design
| Product type | Optical network unit (ONU) |
|---|---|
| Product colour | Black |
| LED indicators | LAN, Power |
Network
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|---|
| ITU standards | G.984 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Switch layer | L2/L3 |
| Upstream data rate | 2488 Mbit/s |
| Downstream data rate | 1244 Mbit/s |
| Transmission distance max | 20 km |
| Tx wavelength max | 1310 nm |
| Rx wavelength max | 1490 nm |
| VLAN support | Y |
Wireless LAN features
| Wi-Fi | Y |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | Internal |
| Antenna gain level max | 3 dBi |
Management features
| Reset button | Y |
|---|
Security
| Security algorithms | AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
|---|
Ports interfaces
| Fiber ports quantity | 1 |
|---|---|
| Fiber optic connector | SC |
| Ethernet LAN RJ-45 ports | 4 |
| USB ports quantity | 1 |
| DC-in jack | Y |
Power
| Output voltage | 5 V |
|---|---|
| Output current | 3 A |
| Power consumption max | 11 W |
Technical details
| Sustainability certificates | CE |
|---|
Operational conditions
| Operating temperature T-T | -15 – 45 °C |
|---|---|
| Operating relative humidity H-H | 10 – 90% |
Weight dimensions
| Width | 141.5 mm |
|---|---|
| Depth | 140.8 mm |
| Height | 31.6 mm |
| Weight | 415 g |
Packaging content
| Quantity | 1 |
|---|---|
| AC adapter included | Y |
