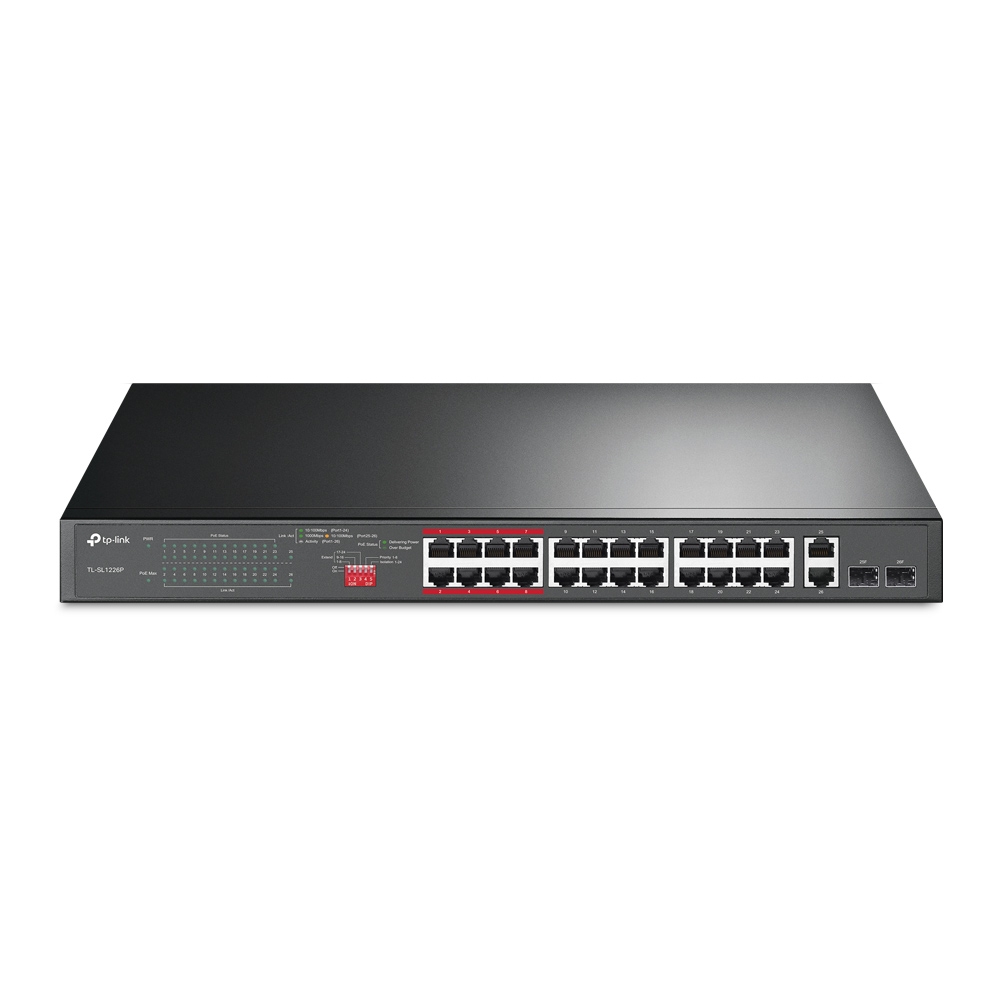

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
$365.70
TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch with 250W PoE budget, Extend Mode, and Priority Mode.
14 in stock
- QLD6 in stock
- NSWOut of stock
- VIC5 in stock
- WA2 in stock
- SA2 in stock
Need bulk quantities? Contact us for corporate & education orders.
TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
• 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
• Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play, with no configuration and installation needed
HARDWARE FEATURES
| Interface | 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Backup Bandwidth | 8.8 Gbps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W |
| Mac Address Table | 8 K |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
SOFTWARE FEATURES
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control |
NWTL-SL1226P
| Weight | 3.0 kg |
|---|---|
| Dimensions | 44.0 × 18.0 × 4.4 cm |
| Ports | 24 x 10/100 mbps rj45 ports (poe/poe+), 2 x 10/100/1000 mbps rj45 ports, 2 x gigabit sfp slots |
| Power Delivery | |
| Standards And Protocols | |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Power Supply | |
| Brand | |
| MPN | TL-SL1226P |
| Gtin |
