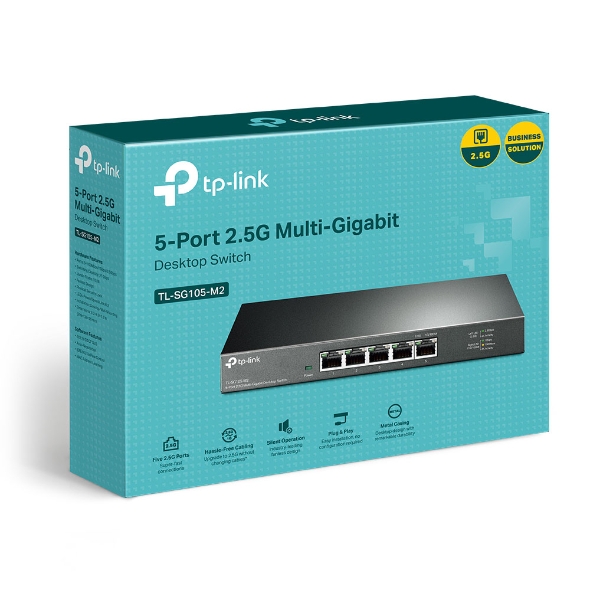

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch
$93.63
TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch with up to 25 Gbps switching capacity for high-speed local network connections.
7 in stock
- QLDOut of stock
- NSWOut of stock
- VICOut of stock
- WA2 in stock
- SA2 in stock
Need bulk quantities? Contact us for corporate & education orders.
TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch
Features
- Five 2.5 Gbps Ports: 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity.
- Super-Fast Connections: Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios: Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling: Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: Allows for easy deployment without the need for a technician.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
HARDWARE FEATURES
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1 A) |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | 12.11 W |
| Max Heat Dissipation | 41.32 BTU/h |
PERFORMANCE
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 10 KB |
SOFTWARE FEATURES
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transfer Method | Store and Forward |
OTHERS
| Certification | CE, FCC ,RoHS |
| Package Contents | • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing |
NWTL-SG105-M2
| Weight | 0.6 kg |
|---|---|
| Dimensions | 20.9 × 12.6 × 2.6 cm |
| Ports | |
| Standards And Protocols | ieee 802.3, ieee 802.3u, ieee 802.3ab, ieee 802.3bz, ieee 802.3x, ieee 802.1p |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Buffer Size | |
| Power Supply | |
| Dimensions | |
| Brand | |
| MPN | TL-SG105-M2 |
| Gtin |
