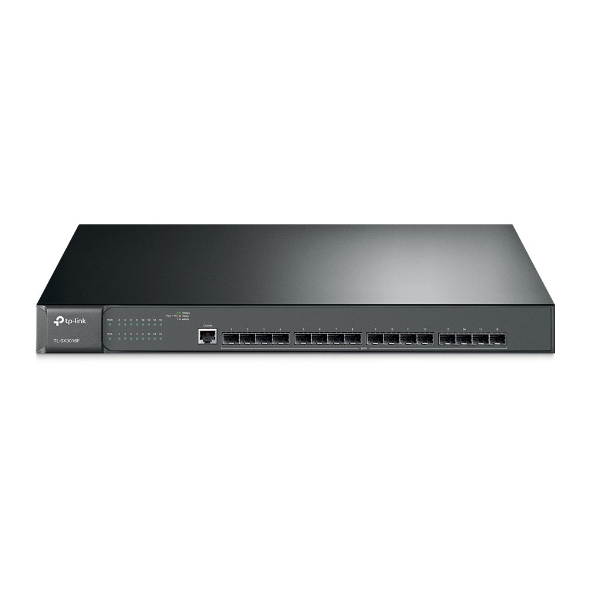

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
$1,253.34Free shipping
TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch with Omada SDN support, static routing, and robust security features.
2 in stock
- QLDOut of stock
- NSW1 in stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Features
- 16× Full 10 Gbps SFP+ Slots – Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
- Centralized Cloud Management – Integrates into Omada SDN for cloud access and remote management
- Abundant L2 and L2+ Features – Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
- Robust Security Strategies – Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
- Robust Hardware Design – Its fanless design ensures silent operation, while its durable metal casing and up to 45 ℃ operation temperature ensures reliability
Specifications
| Category | Specification Details |
|---|---|
| General | |
| Interface | 8 10GE SFP+ Slots 16 10GE SFP+ Slots |
| Console | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber |
| Performance | |
| Switching Capacity | 160 Gbps 320 Gbps |
| Packet Forwarding Rate | 119.04 Mpps 238.08 Mpps |
| MAC Address Table | 32K |
| Packet Buffer | 16 Mbit 24 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Physical & Environment | |
| Dual Redundant Power Supply | – 2 Fixed AC Power Supply |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz) |
| Max Heat Dissipation | 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz) |
| Standby Power Consumption | 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz) |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Fan Quantity | Fanless 1 |
| Installation | Rack Mountable |
NWTL-SX3016F
| Weight | 2.65 kg |
|---|---|
| Dimensions | 44.0 × 18.0 × 4.4 cm |
| Standards And Protocols | |
| Ports | 16 x 10 gbps sfp+ slots, 1 x rj45 console port, 1 x micro-usb console port |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Cable Management | |
| Power Supply | |
| Form Factor | 19 -inches rack-mountable |
| Brand | |
| MPN | TL-SX3016F |
| Gtin |
