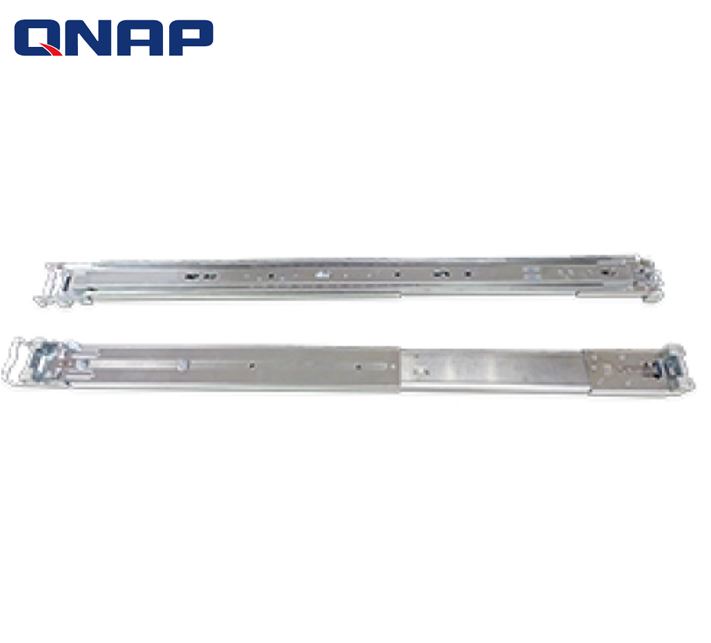

QNAP RAIL-A03-57 Rack Slide Rail Kit
$323.43
Rack slide rail kit for QNAP 2U/3U NAS series with a maximum load capacity of 57kg.
Out of stock
Out of stock
- QLDOut of stock
- NSWOut of stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
The QNAP RAIL-A03-57 is a high-performance rack slide rail kit designed for mounting QNAP 2U and 3U rackmount NAS systems into standard server racks. Engineered for durability and stability, this kit supports a maximum load capacity of 57kg.
Key Specifications:
- Maximum Load Capacity: 57 kg
- Dimensions: 710 x 99 x 68 mm (28.4 x 3.96 x 2.72 inches)
- Weight: 2.63 kg (5.80 lbs)
Rack Compatibility Requirements:
To ensure proper installation, your server rack must meet the following criteria:
- Mounting post width: ≥ 451mm (17.8″)
- Panel width: ≥ 485mm (19.1″)
- Mounting post depth: 579.1mm ~ 873.5mm (22.8″ ~ 34.4″)
- Distance between rack posts: 465mm (18.3″) (center-to-center measurement of square holes)
Compatible Models:
TS-1673U, TS-1673U-RP, TS-879U-RP, TS-1279U-RP, TS-EC879U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, WB-1200U-RP, WB-1600U-RP, TS-EC880U-RP, TS-EC1280U-RP, TS-EC1680U-RP, REXP-1220U-RP, REXP-1620U-RP, TS-EC880U R2, TS-EC1280U R2, TS-EC1680U R2, TVS-EC880U-SAS-RP, TVS-EC1280U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC880U-SAS-RP R2, TVS-EC1280U-SAS-RP R2, TVS-EC1680U-SAS-RP R2, TDS-16489U, TES-1885U, TES-3085U, TS-1677XU-RP, TVS-1672XU-RP, TS-1683XU-RP.
BAQN-RAIL-A03-57
| Maximum Weight Capacity | |
|---|---|
| Dimensions | |
| weight | 2.63 kg |
| Mounting | |
| Mounting Post Width | |
| Panel Width | |
| Mounting Post Depth | |
| Rack Post Distance | |
| Brand | |
| MPN | RAIL-A03-57 |
| Gtin |
Product information is sourced directly from suppliers and manufacturers; while we strive for accuracy, descriptions may occasionally contain errors. Ezy P.C. Sales and AusOffice Supplies are not responsible for typographical or photographic inaccuracies, and product images are for illustrative purposes only.
It is the customer's sole responsibility to ensure that the item, hardware component (i.e. Memory, Motherboard, CPU, GPU etc.), or consumable (such as ink and toner cartridges) purchased is fully compatible with their existing equipment, parts, or systems prior to finalising the purchase. We cannot guarantee compatibility with third-party products. In accordance with Australian Consumer Law, returns or refunds are not required to be provided for compatibility errors, incorrect selection, or change of mind once an order is processed.
All prices are in Australian Dollars (AUD), include GST, and are subject to change without notice. We recommend verifying specific details with our team prior to purchase. All sales are subject to our Terms & Conditions and Returns Policy. Delivery charges apply unless otherwise specified. As stocks are limited, we reserve the right to restrict commercial quantities. No further discounts apply to promotional items. These terms do not exclude or limit your rights under the Australian Consumer Law.
