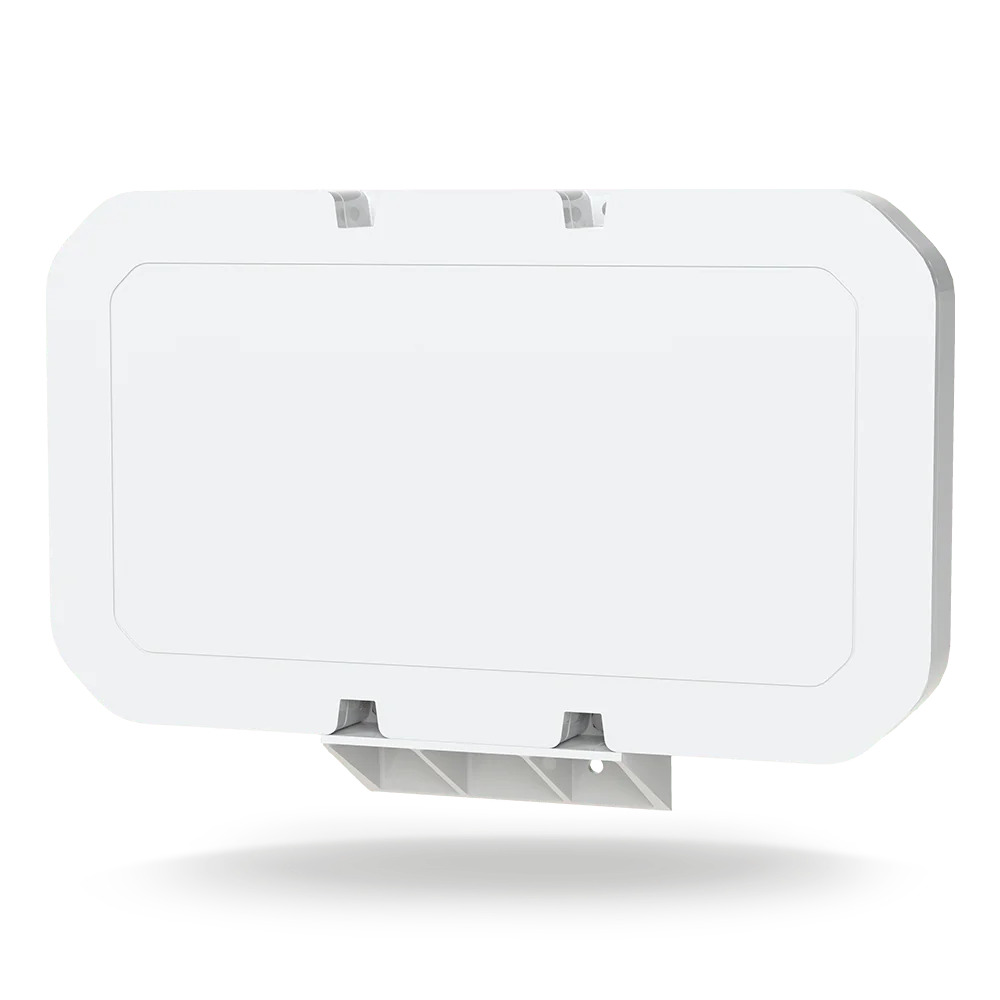

PANORAMA 4×4 MiMo Omnidirectional Antenna, 4G/5G LTE Ready, WALL, DESK, MOUNT, 617-6000MHz, 5m SMA(m), IP66 rated

PANORAMA 4×4 MiMo Omnidirectional Antenna, 4G/5G LTE Ready, WALL, DESK, MOUNT, 617-6000MHz, 5m SMA(m), IP66 rated

The DWMM4[G]-6-60 Antenna Provides a 4x4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

Suitable for Indoor or Outdoor Use
Branch Office Enterprise
Failover

ELECTRICAL DATA
Max Input Power(W) 10
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements No
UHF Elements No
GPS DATA
LNA GAIN (dB) 26
Number of GPS Elements No; 1 Module

MECHANICAL DATA
Colour White
Length 371 (mm) | 14.61 (in)
Width 40 (mm) | 1.57 (in)
Height 221 (mm) | 8.70 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)

TERMINATION DATA
Connector (GPS) SMA (m); FAKRA C; N (m); N (f)
Connector (LTE) SMA (m); N (f); FAKRA D; N (m)

MOUNTING DATA
Mounting Type Fixed Desk; Mast; Wall
Mounting Methods Desk; Mast; Wall; Pole

APPROVALS DATA
IP Rating IP66
TECHNOLOGY DATA
Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS
