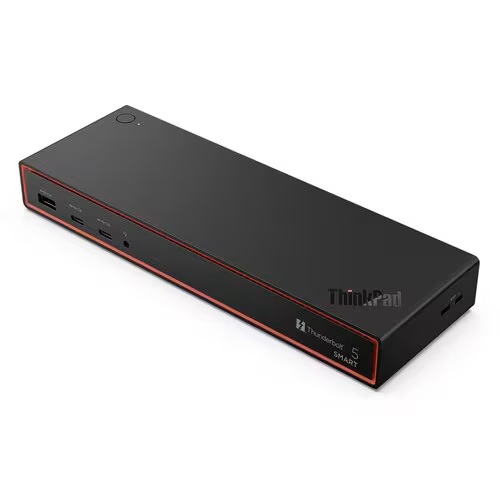

LENOVO ThinkPad Thunderbolt 5 Smart Dock 7500 - 180W PD 2xThunderbolt 5 2xUSB-C 1xHDMI 2xDP 3xUSB-A 1x2.5Gb LAN Audio Jack Supports 5 displays

Feature
Product Description
New Generation Docking Station Power House; The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the perfect Docking Station for your Lenovo Mobile Workstation on your desk offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console for IT managers, the Lenovo Accessories Fleet Manager powered by AWS

Top Features
The ThinkPad® Thunderbolt™ 5 Smart Dock 7500 support upto 180W PD 3.1 charge power;
3 x 8K@60Hz + 1 x 4K@60Hz or 2 x 4K@240Hz + 2 x 4K@120Hz display support;
Data transfer speed up to 80Gbps in standard mode or 120Gbps in Bandwidth Boost mode;
Support vPro / AMT Pass Through;
2.5Gb Ethernet supports WOL, PXE Boot, MAC address pass through on ThinkPad Notebooks;
Fleet Smart Management with Lenovo™ Accessories Fleet Manager (LAFM);
Universal Dock Compatibility a cross different Operating Systems, Windows, Linux, macOS 15 Sequoia and above

Port Number Description
1 USB‑A 3.2 Gen 2 (always on)
2 USB‑C 3.2 Gen 2 (always on)
3 USB‑C 3.2 Gen 2 (always on)
4 3.5 mm Stereo/Mic Combo Port
5 Power Connector
6 Thunderbolt – for Host connect
7 Thunderbolt 5
8 Thunderbolt 5
9 HDMI
10 DisplayPort
11 DisplayPort
12 USB‑A 3.2 Gen 2
13 USB‑A 3.2 Gen 2
14 Gigabit Ethernet
15 2× Security lock slot

Shipment Group
1 x Thunderbolt 5 Smart Dock with intergrated 1m Thunderbolt 5 cable
1 x 265W Power Adaptor
1 x Power Cord
1 x Lenovo Accessories Fleet Manager Flyer
1 x Setup poster
1 x Warranty Poster

Smart Find Visibility Yes
Warranty Type CRU
Warranty Period 3 Year
Maximum Relative Humidity (%) 95%
Minimum Relative Humidity (%) 20%
Maximum Operating Temperature 40℃
Minimum Operating Temperature 0℃
Packed Weight 1730 g
Packed Dimensions (L x D x H) 260 mm x 165 mm x 74 mm
Package Type Brown Box
Product Weight 585g with Cable
Height 30 mm
Depth 80 mm
Length 235 mm
Thunderbolt Port 2
Color Eclipse Black
Power Plug Yes
Power Button Yes
Output Power 180W
Power Delivery PD 3.1
Input Power 265W
Charging Port USB-C
Maximum Resolution/Refresh Rate 8K / 60Hz
Max Number of External Monitors 4
Physical Security Feature Kensington Nano Lock
Kensington Micro Lock
Ethernet 2.5Gbps
Audio Ports 3.5 mm
Video Ports 2 x DP 2.1
1x HDMI 2.1
2 x TBT 5 FullFunction
Supported OS Windows
macOS
Linux

Compatibility - https://psref.lenovo.com/l/accessory/40BA0265AU?tab=Compatibility
Brochure - https://d1fyvoqprbjuee.cloudfront.net/Docking/Thunderbolt%20Docks%20(Universal%20Cable%20Docks)/a202d510-c901-4fd3-8f7c-7fce00ce7b65
