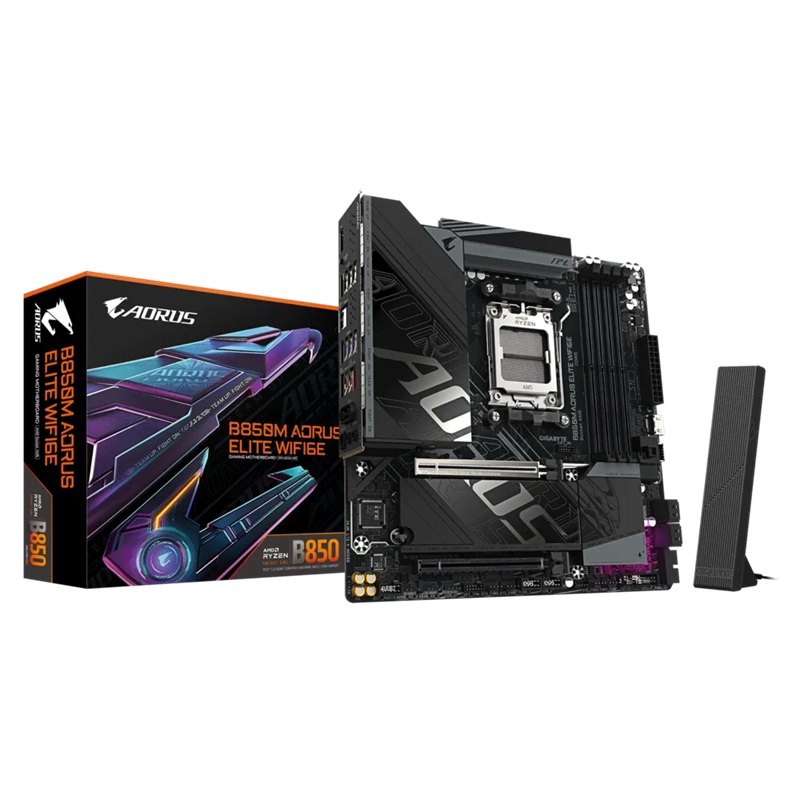

Gigabyte B850M AORUS ELITE WIFI6E Motherboard
$341.22
Micro-ATX AMD AM5 motherboard with B850 chipset, supporting Ryzen 7000/8000/9000 series, 256GB DDR5 RAM, dual M.2 slots, 2.5GbE LAN, and Wi-Fi 6E.
52 in stock
- QLD8 in stock
- NSW18 in stock
- VIC8 in stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
Gigabyte B850M AORUS ELITE WIFI6E Motherboard
The Gigabyte B850M AORUS ELITE WIFI6E is a feature-packed Micro-ATX motherboard designed for AMD AM5 socket processors, delivering next-generation performance with support for Ryzen 9000, 8000, and 7000 series processors.
CPU Support
- AMD Socket AM5
- Supports AMD Ryzen™ 9000 Series Processors
- Supports AMD Ryzen™ 8000 Series Processors
- Supports AMD Ryzen™ 7000 Series Processors
Chipset
- AMD B850
Memory
- 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 1.4 version and HDR)
- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (Support for HDMI 1.4 version)
Audio
- Realtek® Audio CODEC / Realtek® ALC1220 CODEC
- High Definition Audio supporting 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN & Wireless
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Realtek® Wi-Fi 6E RTL8852CE (Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5/6 GHz carrier frequency bands)
- Bluetooth 5.3
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU
- 1 x M.2 connector (M2B_CPU), integrated in the CPU
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
MBG-B850MAELTWF6E
| Chipset | |
|---|---|
| Form Factor | micro-atx |
| socket | am5 |
| Max Ram | |
| Memory Slots | |
| Ram Type | |
| Ethernet | |
| Connectivity | wi-fi 6e, bluetooth 5.3 |
| Expansion Slots | 1 x pci express x16 slot (pciex16), 1 x pci express x16 slot (pciex4) |
| Storage Slots | |
| Audio | |
| Motherboard Form Factor | |
| Ram Slots | |
| Wifi Standard | |
| Bluetooth | |
| Brand | |
| MPN | B850M AORUS ELITE WIFI6E |
| Gtin |
