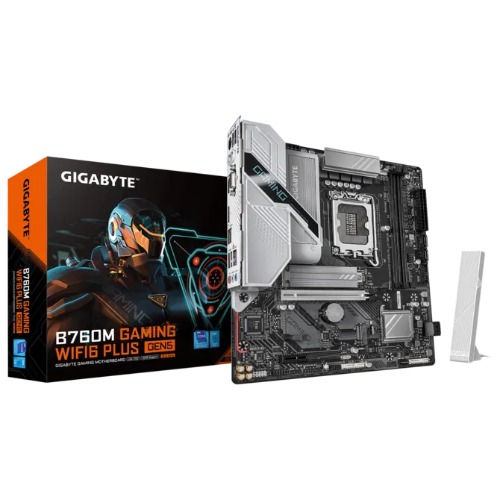

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Motherboard

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard

The Gigabyte B760M GAMING WIFI6 PLUS GEN5 is a micro-ATX motherboard designed to support Intel’s 14th, 13th, and 12th generation processors on the LGA 1700 socket. Built on the Intel B760 chipset, it offers robust performance with support for up to 128GB of DDR5 memory, PCIe 5.0 graphics expansion, dual M.2 storage slots, and advanced connectivity including Realtek 2.5GbE LAN and Wi-Fi 6.

CPU Support

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset

• Intel® B760 Express Chipset

Memory

• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x antenna connectors (1T1R)
• 1 x D-Sub port
• 1 x HDMI port
• 1 x DisplayPort
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 3 x audio jacks

MBG-B760MGAMINGWF6PLGN5
