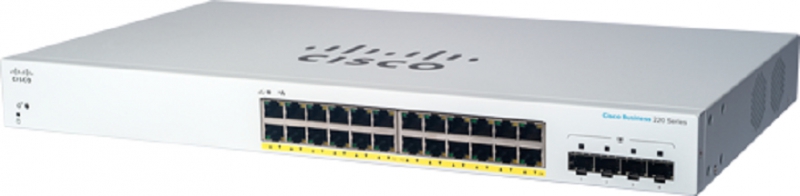

Cisco CBS220-24P-4G-AU, Smart Switch, 24xPOE Ports, 4xSFP Slots, 3 Year Warranty
$823.20
Out of stock
- QLDOut of stock
- NSWOut of stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
Weight dimensions
| Width | 440 mm |
|---|---|
| Depth | 257 mm |
| Height | 44 mm |
| Weight | 4.07 kg |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| Number of power supply units | 1 |
| AC input voltage | 100 – 240 V |
Ports interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|---|
| Jumbo frames | 9216 |
| Quality of Service QoS support | Y |
| Jumbo frames support | Y |
| Spanning tree protocol | Y |
| 10G support | Y |
| Port mirroring | Y |
| VLAN support | Y |
| IP routing | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Security
| DHCP features | DHCP client |
|---|---|
| Access Control List ACL | Y |
| IGMP snooping | Y |
| Loop protection | Y |
| Authentication type | IEEE 802.1x,RADIUS |
Data transmission
| Switching capacity | 56 Gbit/s |
|---|---|
| MAC address table | 8000 entries |
| Number of queues | 8 |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| System event log | Y |
| Reset button | Y |
Protocols
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
|---|---|
| GARP VLAN Registration Protocol GVRP | Y |
Other features
| Number of VLANs | 256 |
|---|---|
| Flow control support | Y |
Power over Ethernet PoE
| Power over Ethernet PoE | Y |
|---|
Operational conditions
| Operating relative humidity H-H | 10 – 90% |
|---|---|
| Storage relative humidity H-H | 10 – 90% |
| Operating temperature T-T | 0 – 50 °C |
| Storage temperature T-T | -20 – 70 °C |
Design
| Form factor | 1U |
|---|---|
| Product colour | White |
| Rack mounting | Y |
Performance
| Built-in processor | Y |
|---|---|
| Auto MDIMDI-X | Y |
Features
| Internal memory | 256 MB |
|---|---|
| Flash memory | 64 MB |
| Security algorithms | SSH,SSH-2,SSL/TLS |
| LED indicators | Y |
Multicast features
| Multicast support | Y |
|---|
II346537
