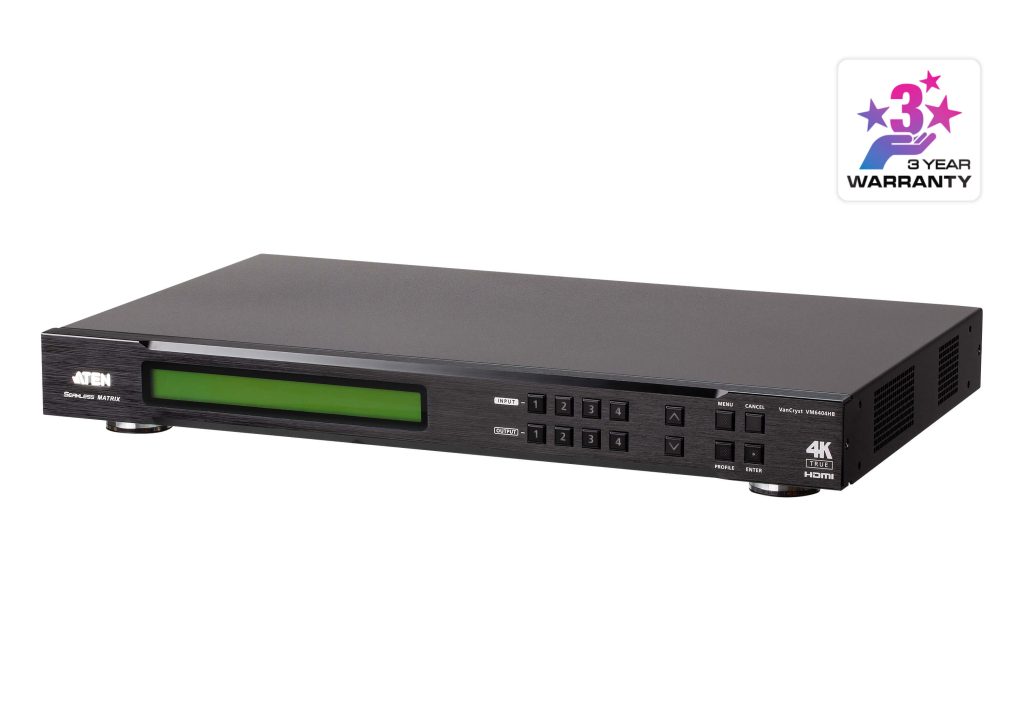

Aten4 x 4 True 4K HDMI Matrix Switch with Scaler

$5,185.20

-16%
Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions ■ FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate ■ HDMI (3D, Deep color, True 4K); HDCP 2.2 compatible ■ Multiple Control Methods – system management via front-panel pushbuttons, IR, […]
SKU: VM6404HB-AT-U Categories: , Tag:

Out of stock

Visa Mastercard American Express PayPal Diners Club Discover
Overview
Additional Info
Reviews

Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
■ FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
■ HDMI (3D, Deep color, True 4K); HDCP 2.2 compatible
■ Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 3.0 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 3.0 m
Video
Max. Data Rate 18.0 Gbps (6.0 Gbps per lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Distance Up to 3 m
Audio
Output 1x Mini Stereo Jack Female
Control
RS-232 Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power 1 x 3-prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A
Power Consumption AC110V:43.7W:205BTU
AC220V:43.1W:202BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 3.52 kg ( 7.75 lb )
Dimensions (L x W x H) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Carton Lot 1 pc
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Ins

Additional information

Weight 4.72 kg
Dimensions 432.4 × 307.3 × 44 cm
