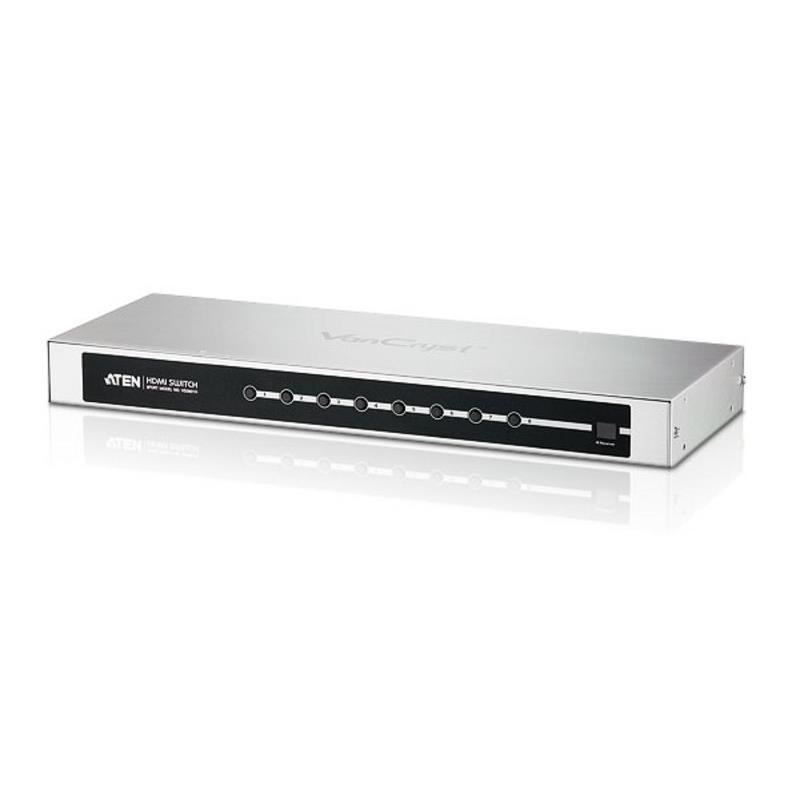

Aten VanCryst 8 Port HDMI Video Switch with Audio and Infra-Red Remote Control

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display. The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H’s built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Video Input

• Interfaces: 8 x HDMI Type A Female (Black)
• Impedance: 100 Ώ
• Max. Distance: 1.8 m

Video Output

• Interfaces: 1 x HDMI Type A Female (Black)
• Impedance: 100 Ώ

Video

• Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
• Max. Pixel Clock: 225 MHz
• Compliance: HDMI (3D, Deep Color)
• HDCP Compatible
• Consumer Electronics Control (CEC)
• Max. Resolution: Up to 1080p
• Max. Distance: Up to 15 m

Audio

• Input: 8 x HDMI Type A Female (Black)
• Output: 1 x HDMI Type A Female (Black)

Control

• RS-232 Connector: 1 x DB-9 Female (Black)
• Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No

Connectors

• Power: 1 x DC Jack

Physical Properties

• Housing: Metal
• Weight: 1.75 kg (3.85 lb)
• Dimensions (L x W x H): 43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.)

KVA-VS-0801H
