CE801 is an extender kit that allows for sharp, life-like True 4K (3840 x 2160 @ 60 Hz 4:4:4) HDMI, RS-232, and USB transmission across 70 m over one single Cat 6 cable. Dual console USB Keyboard / Mouse operation is enabled by the USB control mode pushbutton switching USB console control privilege between the remote and local units. RS-232 extension capability facilitates uninterrupted communication between serialinterfaced devices and equipment, which are crucial in industrial control systems.

CE801 is ideal for medium to large scale applications where incredibly sharp and detailed visualization, multisignal extension, and privileged USB control via local / remote console are essential, including control centers, retail shops, factories, medical facilities, and home theaters.

Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable
Long reach mode – 1080p extension up to 100 m
Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
Supports HDR 10 for enhanced video quality
Supports wide screen format
Supports digital audio formats such as 7.1ch Dolby and DTS audio
Plug-and-play with no software or driver required
Built-in 8KV/15KV ESD protection
Rack-mountable
DC Jack with screw-lock ensures stable and secure connection

Package Contents

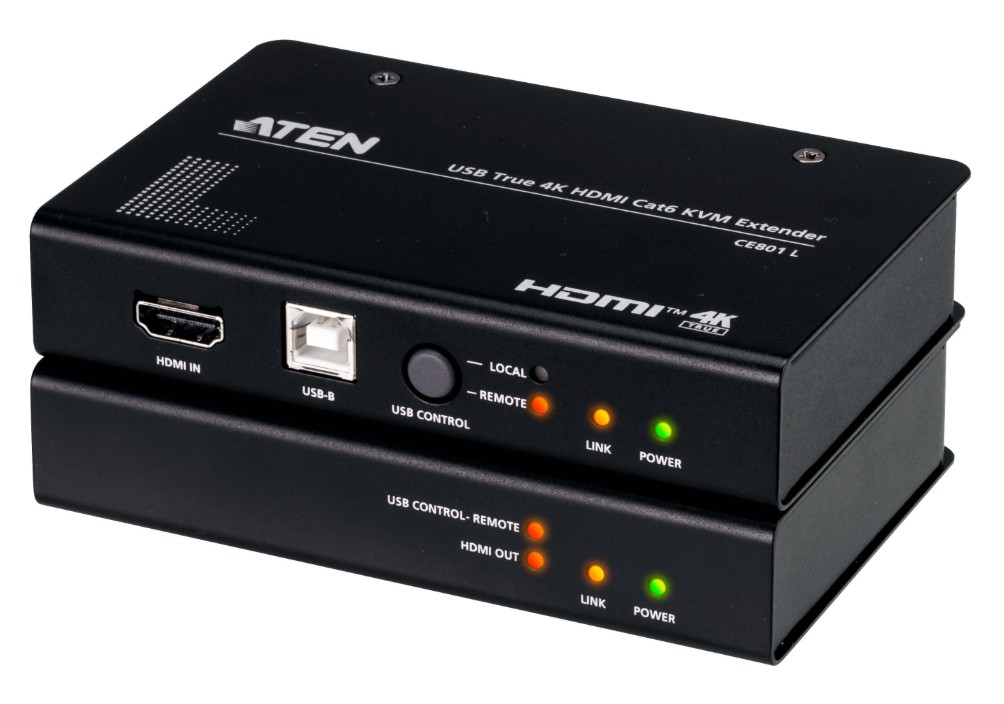

1 x CE801L USB True 4K HDMI Cat 6 KVM Extender (Local Unit)
1 x CE801R USB True 4K HDMI Cat 6 KVM Extender (Remote Unit)
1 x USB Type-A to USB Type-B cable
2 x mounting kits
1 x foot pad set (8 pcs)
2 x power adapters
1 x user instructions
