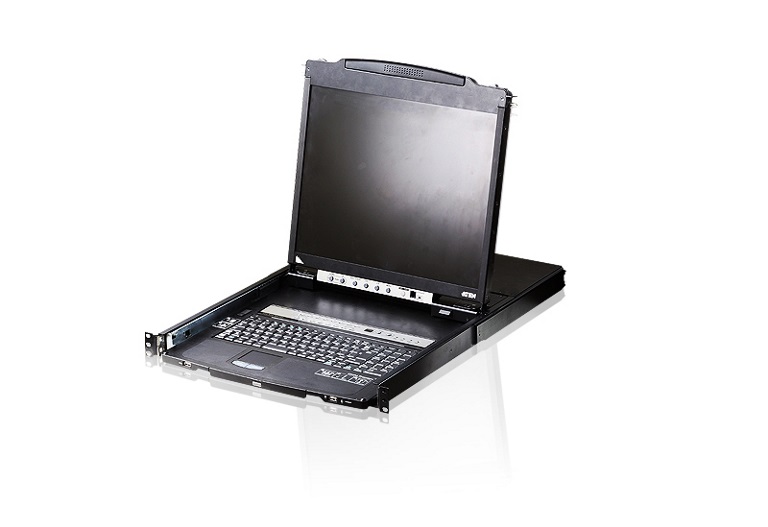

Aten Rackmount KVM Switch Dual Rail 8 Port VGA PS/2-USB w/ 19″ LCD Display

The Aten CL5808 8-port KVM switch features an integrated 19" LED-backlit LCD monitor and a dual-rail design that allows the LCD monitor and the keyboard/touchpad modules to slide independently of each other. With daisy-chain capability, you can control up to 256 computers from a single console.

Computer Connections

• Direct: 8
• Max.: 256 (via Daisy-chain)

Port Selection

OSD, Hotkeys, Pushbuttons

Connectors

• External Console Port: 1 x SPHD-18 Male (Yellow)
• External Mouse Port: 1 x USB Type-A Female (White)
• KVM Ports: 8 x SPHD-17/18 Female (Yellow)
• Daisy-chain Port: 1 x DB-25 Male (Black)
• FW Upgrade: 1 x RJ-11 Female (Black)
• Power: 1 x 3-prong AC Socket
• USB Port: 1 x USB Type-A Female

Switches

• Reset: 1 x Semi-recessed Pushbutton
• Power: 1 x Rocker
• F/W Upgrade: 1 x Slide
• LCD Adjust: 4 x Pushbutton
• LCD On/Off: 1 x LED Pushbutton (Orange)
• Port Selection: 2 x Pushbutton (LCD); 8 x Pushbutton (Keyboard)
• Station Selection: 2 x Pushbutton

LEDs

• On Line: 8 (Orange)
• Selected: 8 (Green)
• Station ID: 2 x 7-segment LED Display (Orange)
• Power: 1 (Dark Green)
• Lock: Num: 1 (Green), Caps: 1 (Green), Scroll: 1 (Green)

Specifications

• Emulation – Keyboard/Mouse: PS/2, USB
• Video: 1280 x 1024 @ 75 Hz; DDC2B
• Scan Interval (OSD Select): 1–255 sec.
• I/P Rating: 100–240 V AC, 50/60 Hz, 1 A
• Power Consumption: 120V, 30.1W ; 230V, 30.7W
• Environment: Operating Temp.: 0 ~ 50°C, Storage Temp.: -20 ~ 60°C, Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties: Housing: Metal + Plastic, Weight: 14.83 kg, Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm

Package Contents

• 1 x CL5808 KVM Switch with Standard Rack Mounting Kit
• 2 x Custom KVM Cables
• 1 x 5-in-1 Console Cable
• 1 x Firmware Upgrade Cable
• 1 x Power Cord
• 1 x User Instructions

KVA-CL-5808NA
