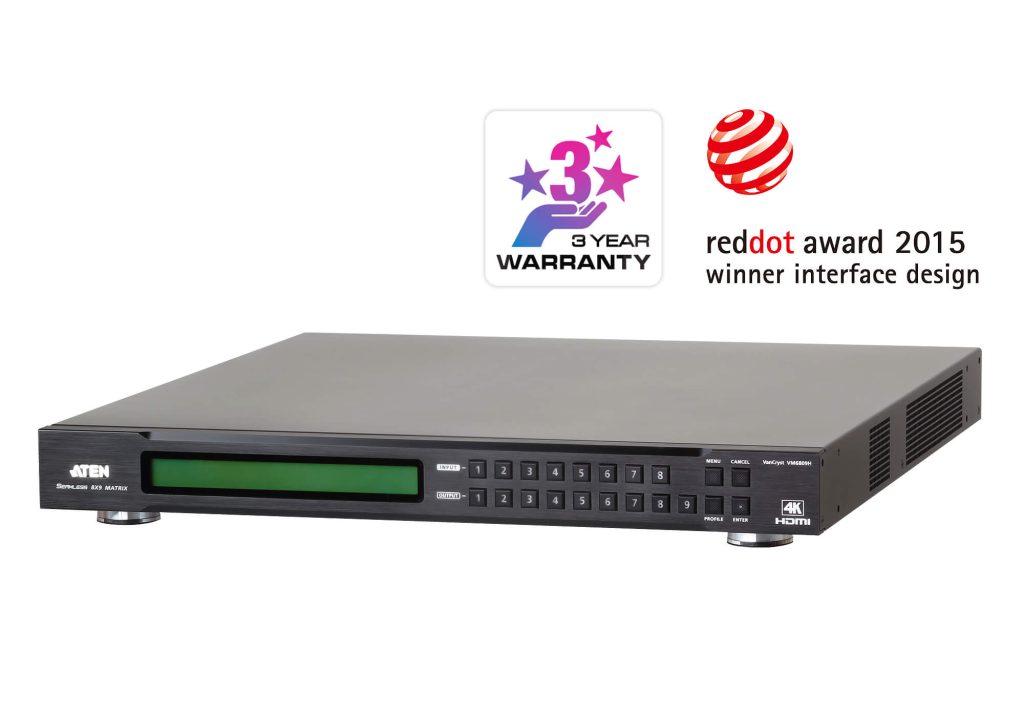

Aten Professional Matrix 8×9 4K HDMI Matrix with Scaler, Seamless Switch, control via front-panel pushbuttons, IR remote and RS232 control
Original price was: $13,264.90.$9,694.68Current price is: $9,694.68.
is available on purchases between $10 and $2,000 learn more
Out of stock
Aten 8×9 4K HDMI Matrix with Scaler, Seamless Switch, Video Wall support, control via front-panel pushbuttons, IR remote and RS232 control, EDID management, FrameSync ensures synchronised video across screens in a video wall
8 x 9 HDMI input/output connections
Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Web GUI/Telnet via Ethernet connections
Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 9 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 15 m
Video
Max. Data Rate 10.2 Gbps (3.40 Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance Up to 15 m
Audio
Output 1 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power 1 x 3-prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A
Power Consumption AC110V:79.5W:373BTU
AC220V:78.1W:366BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 7.05 kg ( 15.53 lb )
Dimensions (L x W x H) 43.24 x 45.03 x 4.40 cm
(17.02 x 17.73 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Additional information
Weight | 7.05 kg |
---|---|
Dimensions | 432.4 × 450.3 × 44 cm |
