Aten Inductive Proximity Door Sensor

$42.00

-12%
For the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings. * […]
SKU: EA1441 Categories: , Tag:

Out of stock

Visa Mastercard American Express PayPal Diners Club Discover
Overview
Additional Info
Reviews

For the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.

* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.

**Support PE7/PE8/PE9 series only

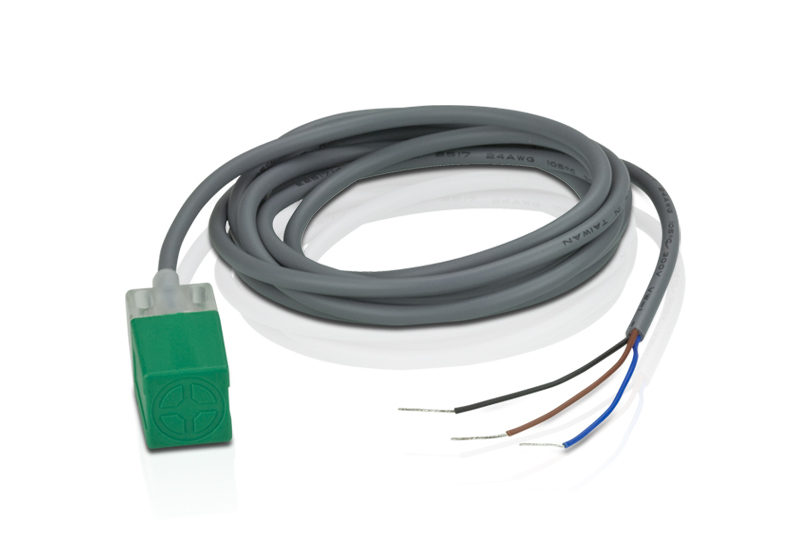

The Inductive Proximity Door Sensor allows the monitoring of a rack mounted enclosure’s door access – notifying users when a door has been opened
High sensitivity
Easy operation

Operating voltage 10-30 VDC
Ripple of power 20% peak to peak
Current Consumption 10 mA(Max)
Sensing distance 5.0 mm
Hysteresis 10% of sensing distance max
Response frequency 800 Hz(Min)
Output method PNP
Output current 150 mA(Max)
Residual voltage 0.1 V(max)
Leakage current 0.8 mA(Max)
Protection circuit Short circuit polarity reversed protection
Connection 3c/4.0
Dielectric strength 2.5 kv / 1 minute(Min)
Insulation strength 100 MΩ / 500 VDC
Environmental
Operating Temperature -20°C-80°C
Humidity 35%-95% RH
Protection class IP-67
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Additional information

Weight 0.06 kg
Dimensions 1000 × 10 × 10 cm
