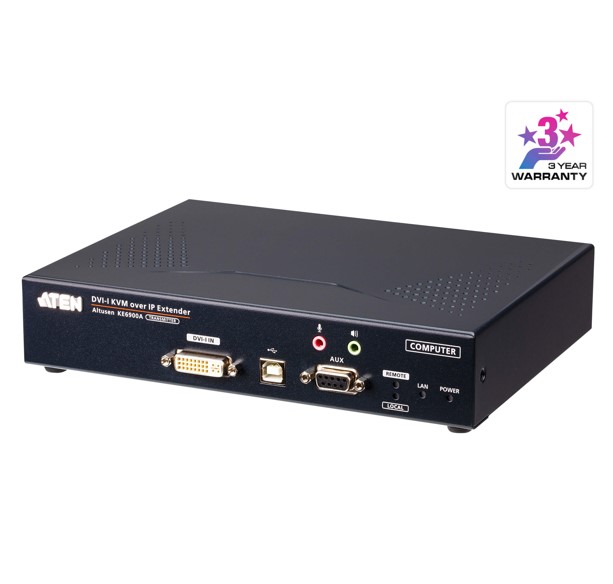

Aten DVI Single Display KVM over IP Transmitter with SFP Fibre Optic network Connection

Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX - automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
Virtual Media Support
Hot pluggable
Rack Mountable
Upgradeable firmware
An industrial-grade power adapter included – supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions
Recommended Network Switches:
Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
• Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
• HP Procurve 2920
• H3C S5120
• Huawei S5700
• DLink DGS-1510
