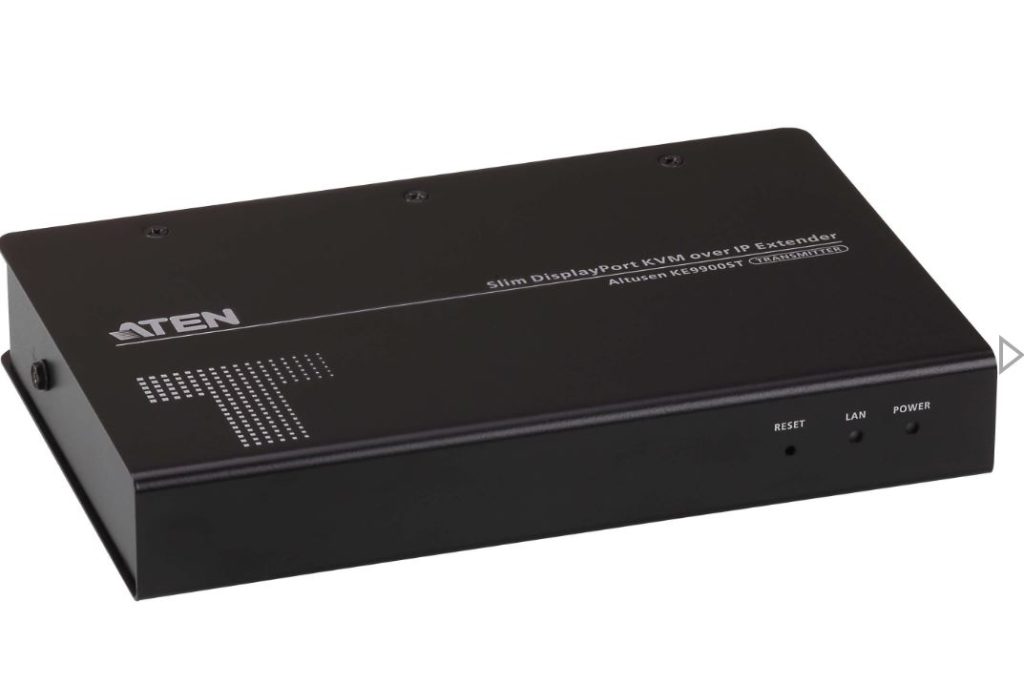

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth; compliant with DP 1.2 and HDCP 1.3
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design

Hardware
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
USB Virtual Media Support
Compliant with DP 1.2 and HDCP 1.3
Auto-MDIX – automatically detects cable type
Built-in 8KV/15KV ESD protection and 1KV surge protection
Slim, light and fanless design for silent operations that are energy efficient
Support connection via Gigabit Ethernet port
Rack Mountable* and Wall Mountable

Connectors
KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.75W:22BTU
DC48V:6.97W:33BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
