Aten 4-Port HDMI Output Board for VM1600A/VM3200
$2,998.28Free shipping
4-port HDMI output board with built-in scaler for Aten VM1600A and VM3200 modular matrix switches.
Out of stock
- QLDOut of stock
- NSWOut of stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
Product Overview

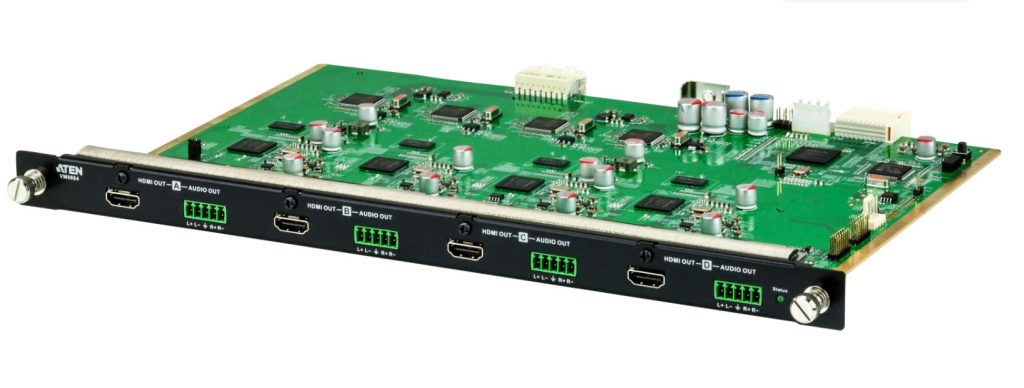

The Aten VM8804 is a 4-port HDMI output board designed for use with the VM1600A and VM3200 modular matrix switches. This expansion board provides flexible routing of high-quality digital video and audio signals across four independent HDMI output channels.
Key Features
- Scalability: Each output port features a built-in scaler to accommodate different video resolutions for connected displays.
- Seamless Switching: Enables continuous video streams, real-time switching, and stable signal transmission.
- High-Quality Video: Supports HDMI (3D, Deep Color) and is fully HDCP 1.4 compatible.
- Audio Support: Integrated audio support via captive screw connectors for professional audio installations.
- Reliability: Robust metal housing designed for professional environments.
Specifications
- Video Output Interfaces: 4 x HDMI Type A Female
- Max. Data Rate: 6.75 Gbps (2.25 Gbps per lane)
- Max. Resolution: Up to 1920 x 1080
- Audio Output: 4 x 5-pole Captive Screw Connector
- Power Consumption: 23.13 W
- Operating Temperature: 0 to 40°C
- Dimensions: 35.20 x 23.80 x 2.33 cm
- Weight: 0.58 kg
Package Contents
- 1 x VM8804 4-Port HDMI Output Board with Scaler
- 4 x Terminal Blocks
- 1 x User Instructions
KVA-VM8804
| Weight | 0.58 kg |
|---|---|
| Dimensions | 35.2 × 23.8 × 2.33 cm |
| Output Power | |
| interface | hdmi |
| Audio Ports | |
| resolution | 1920 x 1080 |
| Housing Material | |
| Hdr Support | |
| Operating Temperature | |
| Storage Temperature | |
| Power Consumption | |
| weight | 0.58 kg |
| Dimensions | |
| Brand | |
| MPN | VM8804-AT |
| Gtin |
