Original price was: $9,729.00.$8,119.20Current price is: $8,119.20.

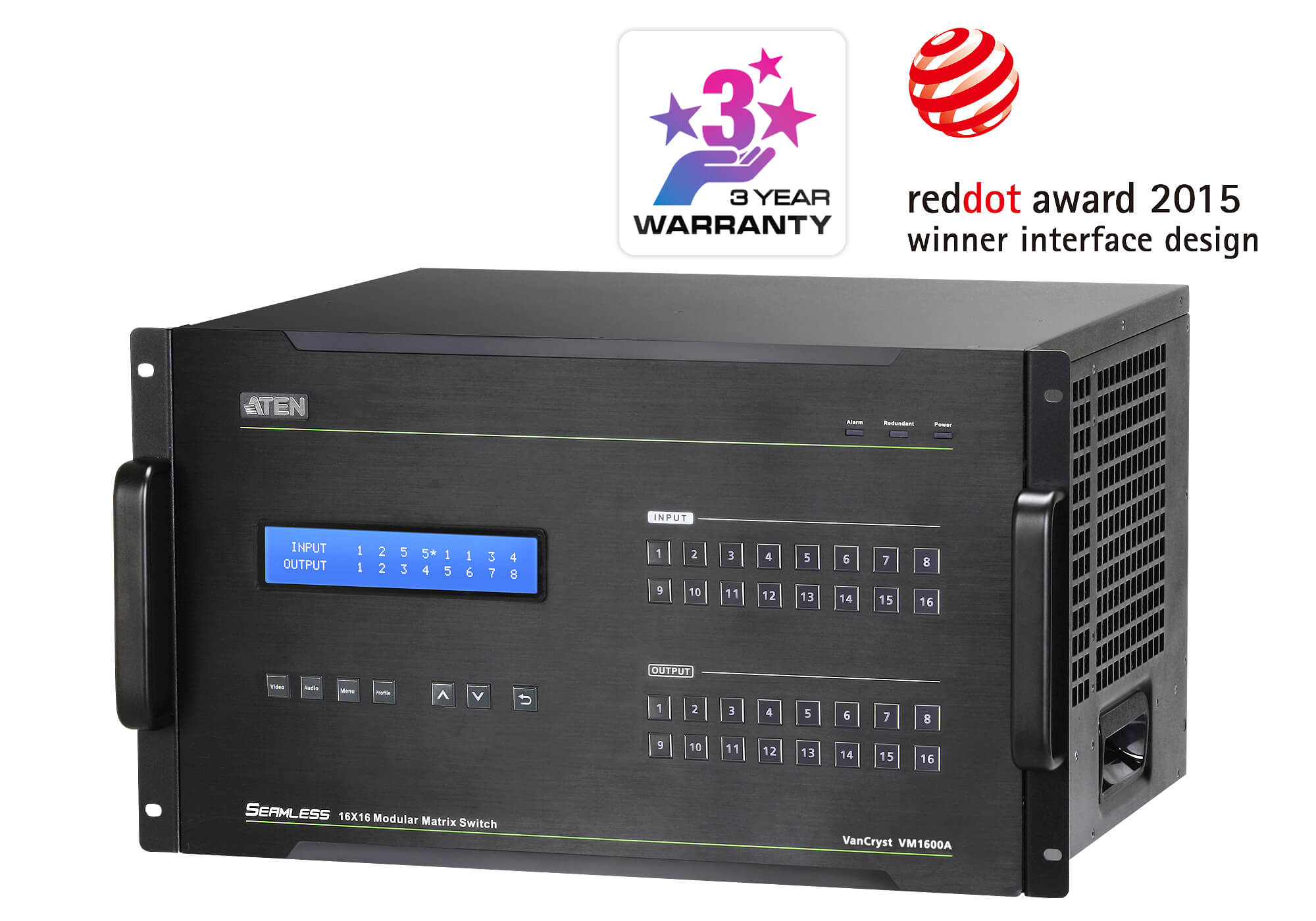

Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons, RS232 and Ethernet (Telnet / Web GUI), supports Video Wall, EDID management and Calendar-based scheduling.
Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
Optional redundant power supply for continuous operation
Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
Board Output 4 x Slot
Board Input 4 x Slot
Video Input
Interfaces Depends on which I/O board is inserted
Max. Data Rate 15.2 Gbps (3.8Gbps per Lane)
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A
Power Consumption AC110V:460W:166BTU
AC220V:460W:156BTU
Fan Airflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60°C
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 15.11 kg ( 33.28 lb )
Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces) 6U
Carton Lot 1 pc
Package Contents
1x VM1600A Modular Matrix Switch
1x Power Cord
1x Terminal Block connector
1x Fan Module (pluggable)
1x Power Module (pluggable)
1x User Instructions
| Weight | 15.11 kg |
|---|---|
| Dimensions | 482 × 466.6 × 265.9 cm |
