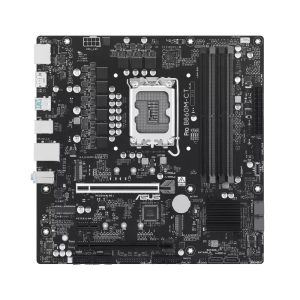

ASUS PRO B860M-CT-CSM-SI, Micro-ATX Motherboard, Intel B860, LGA1851, DDR5 256GB, PCIe 5.0, 2× M.2, 1GbE, Commercial BIOS
$185.00
18 in stock
- QLDOut of stock
- NSW18 in stock
- VICOut of stock
- WAOut of stock
- SAOut of stock
Need bulk quantities? Contact us for corporate & education orders.
ASUS PRO B860M-CT-CSM-SI
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
SPECIFICATIONS
Model
Pro B860M-CT-CSM
News & Updates
Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
Please visit our GLOBAL website to check and download the latest updates.
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5, dual DIMM clips
Supports up to 8666+ MT/s(OC) , Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*’
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Graphics
2 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** DP1 Supports max. 4K@60Hz and DP2 Supports max. 8K@30Hz as all specified in DisplayPort 1.4
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors’ or graphic cards’ resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
Intel® Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 SafeSlot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel®1Gb
ASUS LANGuard
*With Intel® I219-V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth
M.2 slot only 2230 (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
| Brand | |
|---|---|
| Gtin |
Product information is sourced directly from suppliers and manufacturers; while we strive for accuracy, descriptions may occasionally contain errors. Ezy P.C. Sales and AusOffice Supplies are not responsible for typographical or photographic inaccuracies, and product images are for illustrative purposes only.
It is the customer's sole responsibility to ensure that the item, hardware component (i.e. Memory, Motherboard, CPU, GPU etc.), or consumable (such as ink and toner cartridges) purchased is fully compatible with their existing equipment, parts, or systems prior to finalising the purchase. We cannot guarantee compatibility with third-party products. In accordance with Australian Consumer Law, returns or refunds are not required to be provided for compatibility errors, incorrect selection, or change of mind once an order is processed.
All prices are in Australian Dollars (AUD), include GST, and are subject to change without notice. We recommend verifying specific details with our team prior to purchase. All sales are subject to our Terms & Conditions and Returns Policy. Delivery charges apply unless otherwise specified. As stocks are limited, we reserve the right to restrict commercial quantities. No further discounts apply to promotional items. These terms do not exclude or limit your rights under the Australian Consumer Law.
