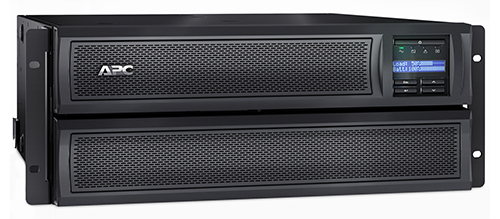

APC Smart-UPS X 2200VA/1980W Line Interactive UPS, 4U RM/Tower, 230V/16A Input, 2x IEC C19 8x IEC C13 Outlets, Lead Acid Battery, Short Depth
Original price was: $4,053.50.$2,903.67Current price is: $2,903.67.
is available on purchases between $10 and $2,000 learn more
Out of stock
APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 2200VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 2200VA UPS ensures consistent and reliable connectivity at the most critical moments. With 12 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics.
Main Input Voltage 208 V, 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 208 V, 230 V
Other Output Voltage 208 V, 220 V, 240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type IEC 320 C20
Schuko CEE 7 / EU1-16P BS1363A British
Output connection type- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
Number of rack unit 4U
Cable length 2.00 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, USB cable
Input voltage limits 140…280 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Acoustic level 55 dBA
Heat dissipation 150 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Replacement Battery -APCRBC143
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Service bypass panels- SBP16KRMI4U, SBP5000RMI2U, SBP6KRMI2U,SBP3000RMHW, SBP3000RMI
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC- AP9613, AP9620, AP9640, AP9641, AP9643,AP9810
Compatible Mounting- AP9625, AR201, NBAC0302
Additional information
Weight | 47.73 kg |
---|---|
Dimensions | 586 × 633 × 330 cm |
