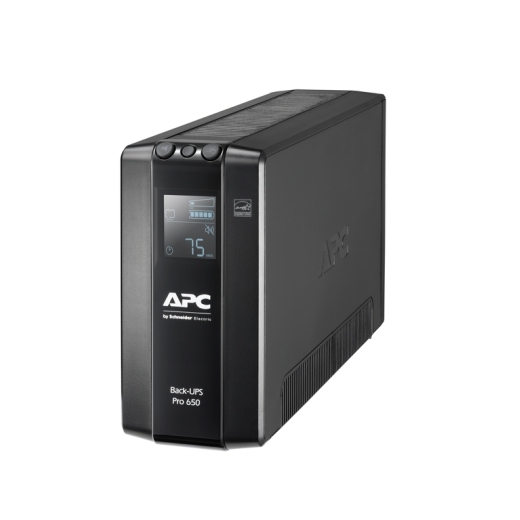

APC Back-UPS Pro 650VA/390W Line Interactive UPS, Tower, 230V/10A Input, 6x IEC C13 Outlets, Lead Acid Battery, LCD, AVR

Technical Specifications
Print
Download
Output
Max Configurable Power (Watts)
390 Watts / 650VA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
10 ms typical : 12 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 - 294V
Batteries Runtime
Battery type
Lead-acid battery
Typical recharge time
12hour(s)
Replacement Battery
APCRBC110
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
6 Watts
Runtime
View Runtime Graph
View Runtime Chart
Communications Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Data Line Protection
RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
91MM, 9.1CM
Maximum Depth
310MM, 31.0CM
Net Weight
6.4KG
Shipping weight
7.4KG
Shipping Height
255MM, 25.5CM
Shipping Width
440MM, 44.0CM
Shipping Depth
143MM, 14.3CM
Master Carton Dimensions (Length x Width x Height)
279 x 457 x 229MM
Master Carton Units
2.0
Master Carton Weight
15.65
SCC Codes
10731304346934
