Antec C6 Curve AIR – Black, ATX/mATX/ITX, steel/glass, 7 slots, 450mm GPU, 180mm CPU, 3 PWM fans, USB-C 10Gbps

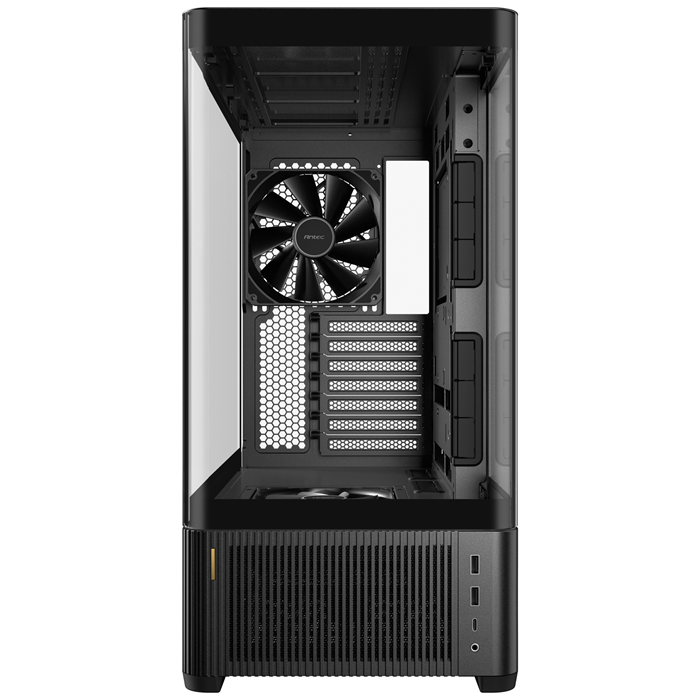

Antec C6 Curve AIR – Black

SPECIFICATIONS

main spec
Dimensions 480 x 235 x 470mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Glass
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1(10Gbps), Headphone/Mic Combo Jack
Side Panel 4mm Tempered Glass

Drive Bays
Expansion Slots 7
3.5′ 1
2.5′ 1

Fan Support
Top 3 x 120mm / 2 x 140mm
Power supply shroud 2 x 120mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 2 x 120mm PWM reverse fans on the PSU shroud + 1 x 140mm PWM fan at the rear
Radiator Support
Top 120 / 140 / 240 / 280 / 360mm
Rear 120mm

Clearance
Max GPU Length ≤ 450mm
Max CPU Cooler Height ≤ 180mm
Max PSU Length Standard mounting (excluding cables) ≤ 150mm (For modular PSUs, the PSU chamber fan bracket must be removed.)
Side mounting (excluding cables) ≤ 160mm

Miscellaneous
Dust Filter Front / Bottom
Net Weight 9.12Kg
Gross Weight 10.79Kg
Warranty 2 Years
UPC 0-761345-10275-9 C6 Curve Air
