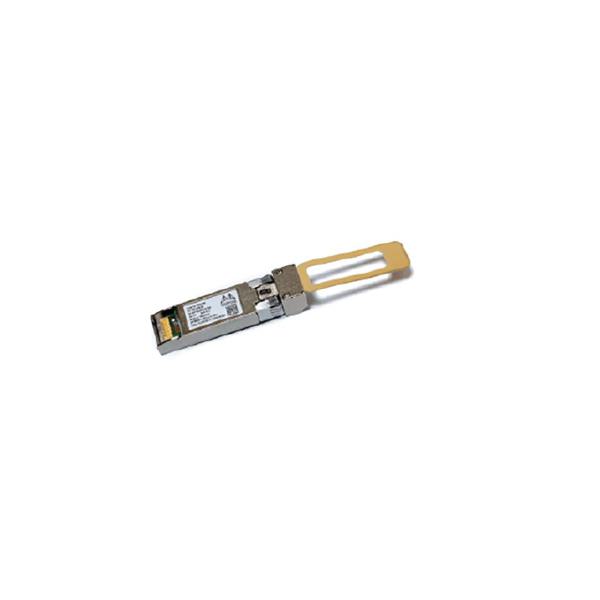

Mellanox transceiver, 25GbE, SFP28, LC-LC, 850nm, SR
Mellanox MMA2P00-AS/MMA2P00-ASHT is a pluggable SFP28 optical transceiver designed for use in 25GbE Ethernet. It incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over a pair of multi-mode fibers (MMF), using a nominal wavelength of 850nm, and is SFF-8402 compliant.
$268.38
Out of stock
Mellanox MMA2P00-AS/MMA2P00-ASHT is a pluggable SFP28 optical transceiver designed for use in 25GbE Ethernet. It incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over a pair of multi-mode fibers (MMF), using a nominal wavelength of 850nm, and is SFF-8402 compliant.
Additional information
| Weight | 0.000 kg |
|---|
Selectable retiming for both Tx and Rx
Programmable Rx output emphasis
Programmable Tx input equalizer
SFF-8402 compliant SFP28
3.3V power supply
SFP28 power level 1
0.7W power dissipation (typ., with retiming)
BER better than 1E-15
Class 1 laser safety
